3D Model

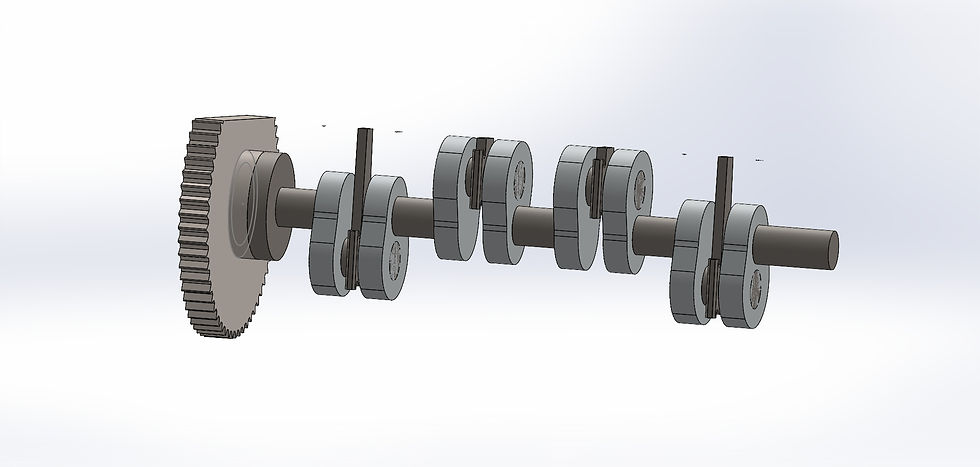

4- Cylinder Inline Engine

​​This video shows the working of the various components inside an engine. Each piston is phased out of each other by a quarter cycle.

This ensures that at least one of the pistons is on a power stroke, resulting in smooth power delivery. The motion of the two middle pistons and the outer two are in sync.
